Laserinterferometer

System µLine

Interferometry with µLine®

Characteristics of the μLine System:

  • Compensation unit is integrated in the laser head
  • Easy programmable in- and outputs
  • Wireless communication to sensor and PC
  • Speed up to 6 m/s in the base versionSmall size, case 350 x 200 x 250 mm
  • Option 2D Ethalon 90° (DIN 876 Grade 000!)
  • Option 3D Ethalon 90° (DIN 876 Grade 000! – also for ProLine Systems)


For more information please      download the brochure.

Applications

µLine Measurement

General Information on Interferometry

Laser Interferometers measure distance with extreme accuracy. 1nm is possible.
This resolution and accuracy makes Laser Interferometers effectively the best way to measure distances accurately (< 0,1mm) in most machine engineering applications.

Thanks to the extreme accuracy in distance measurements, together with one or two optical accessories Interferometers can also be used to measure other things apart from distance. For example:

  • Straightness Measurement
  • Combined straightness and displacement measurement
  • Straightness measurement via Auto collimation.
  • Flatness via auto collimation.
  • Vibration.

The above listed tasks can be completed easier and quicker with other methods and instruments. However, when measuring distances the Interferometer is the absolute Nr 1.

Interferometer

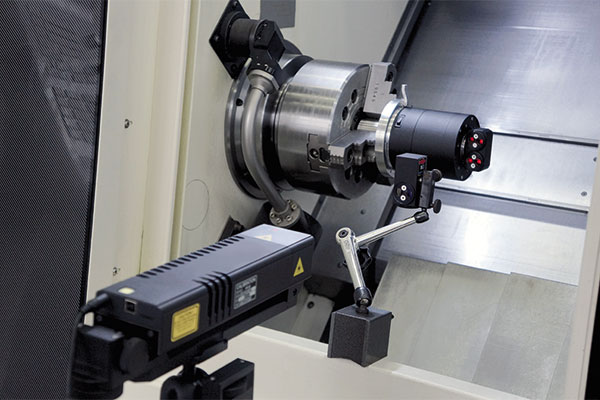

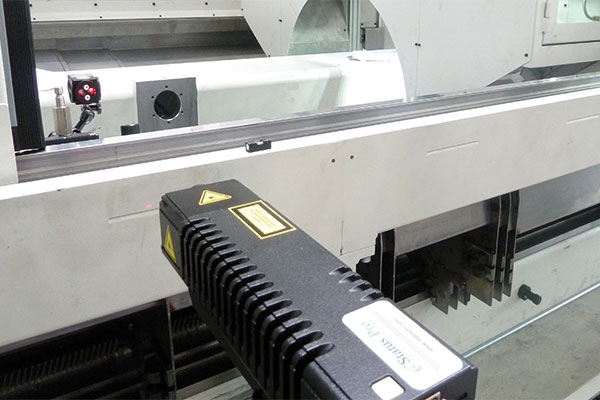

µLine, the precise Laser Interferometer for machine measurements

The precise alignment and calibration of machines is an important part of Quality Management. Especially in the tool machinery market precision down to a µm is required. The new µLine system is an easy to handle yet very precise system for the measurements of straightness and parallelism.
Not only does it provide extremenly precise length / distance measurement but also straightness measurements in X and Y. The first stage interferometer prism is kept out of the laser housing thus avoiding thermal influences and offering maximum flexibility in the setup.
This is often critical in production line applications because it minimizes the degree of machine disassembly required. Measuring points can be performed manually, "semi automatic or completely automatically. The software support is very comprehensive. Apart from Vibration measurement it also supports ISO and IEEE machine compensation procedures. You can even use it to generate G-Codes for machine control.

The precise alignment and calibration of machines is a important part of the Quality Management. Especially in the tool machinery market precision down to a µm is required. The new µLine system is an easy to handle yet very precise system for the measurements of straightness and parallelism.

µLine was developed for the industrial rather than the laboratory environment. It’s a two laser frequency interferometer with an integrated PSD for laser position detection.
µLine has a very extensive “weather station”; environmental influences on the measurement are kept down to a minimum through comprehensive temperature and pressure compensation.
The µLine offers a variety of features which differ from our competitors. Have a look at the advantages.

µLine:

  • Wireless operation of the sensors (no tangling cables )
  • PC Connection over bluetooth
  • Measurement of straightness is possible with the basic set! (3D measurement)
  • Two frequency "Zeemen" laser
  • Automatic generation of G-Codes and compensation tables!
  • Easy electronic beam alignment!
  • Easy to learn software
  • Small and lightweight system complete with case

Alignment Packages

Starter Package

µLine10 System

Deutsch      PC_microLine10_1090_D

english      PC_microLine10_1090_E

Messpaket µLine 20 Logo

Professional Package

µLine20 System

Deutsch      PC_microLine20_1091_D

english      PC_microLine20_1091_E

Messpaket µLine 30 Logo

Professional Package
with IT

µLine 30 System

Deutsch      PC_microLine30_1092_D

english      PC_microLine30_1092_E

Related Technologies

ProLine Collage

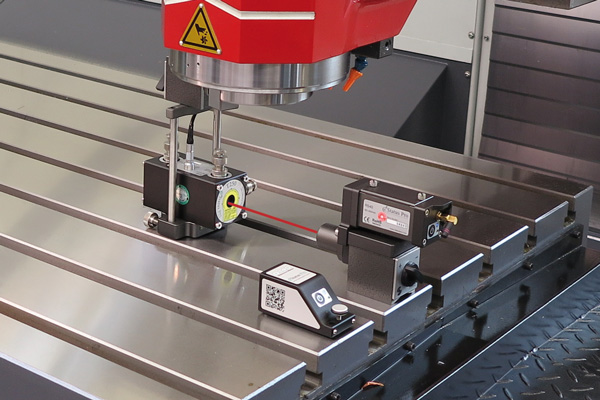

ProLine v3 – Software for automated measurements

ProLine is a "Rerefence Laser + active target" solution. The position of the laser is measured directly by the 2D target with a µm resolution and sent to the Display unit. The distance traveled along the guide is logged by a Disto and also sent to the Display unit.
This solution is most suitable for machine asembly people. Looking to align linear guilds to Advantages: Very rapid setup and measurement, very easy to use esspecially if the object must also be aligned and not just measured, very good documentation and good value for money.

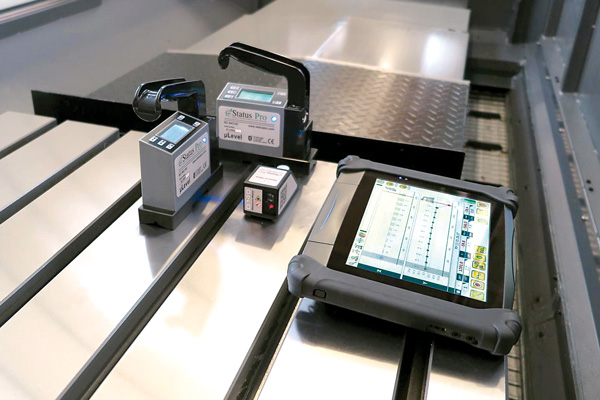

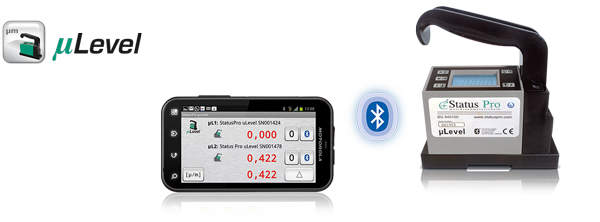

µLevel System

μLevel is a precision Level system for the measurement of machines

According to your requirements we can offer a wide range from a simple handheld system up to a differential system with software.

µLevel is a very exact (1µm/m) spirit level (or inclinometer). Gravity is the reference like with all spirit levels. It is a superb aid for the measurement of machine level and straightness in the vertical plane.





Service

Field Measurement

Service

Over the past 20 years Status Pro has developed a great deal of experience in industrial geometrical measurement. The nature of the business is that the measurement and alignment applications are spread across a wide range of industries.

The team and qualifications:
We have qualified industrial surveyors, mechanical engineers, vibration and alignment specialists in our service team.

Field Measurement Examples :

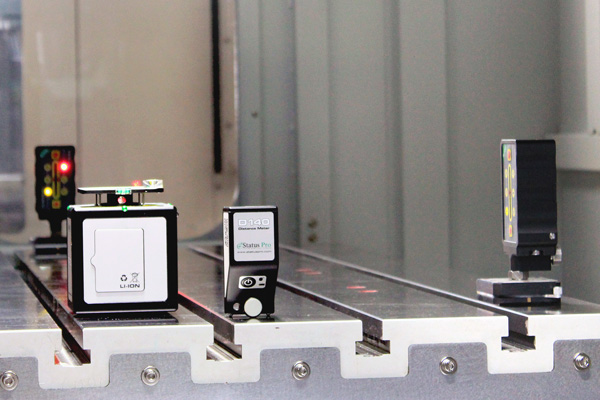

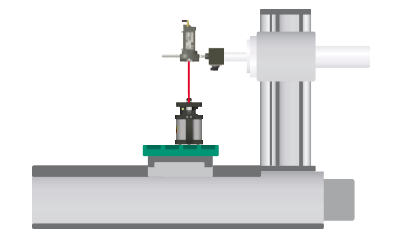

Messung von GeradheitStraightness

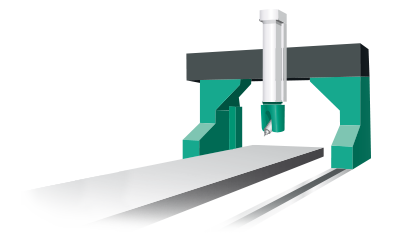

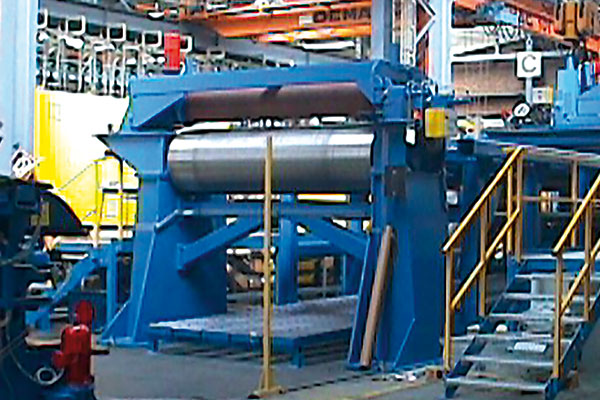

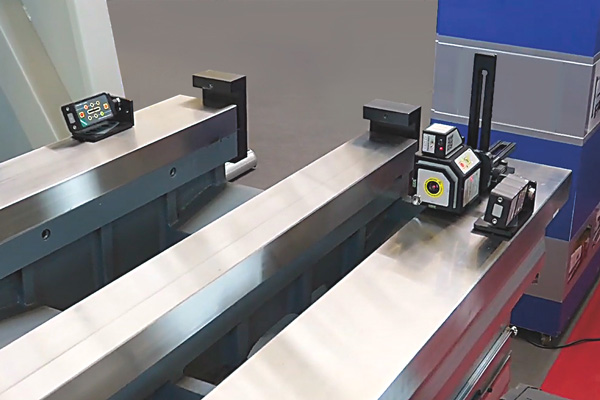

Messung von ParallelitätenParallelism

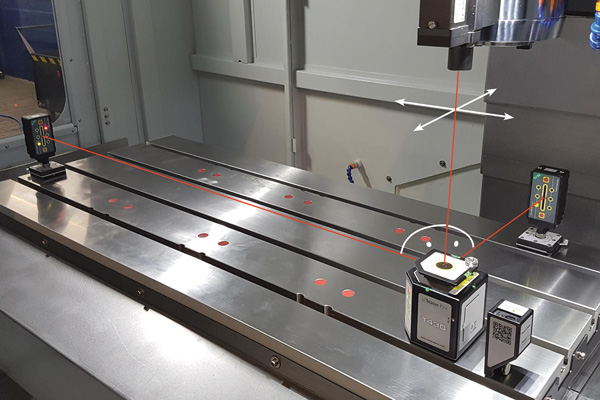

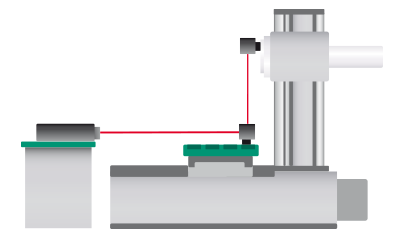

Messung der PositionierungPositioning

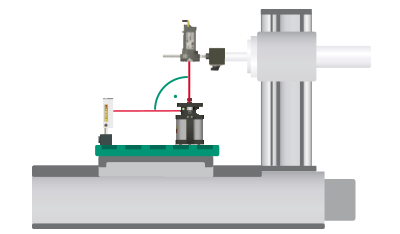

Messung von RechtwinkligkeitSquareness

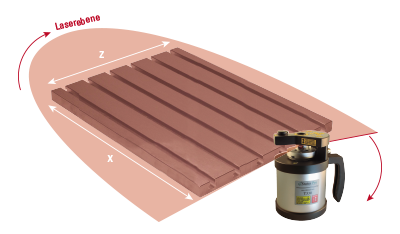

Messung von EbenheitFlatness

Measurement Themes

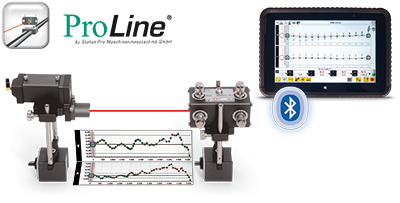

Straightness

Straightness

Flatness and Level

Flatness and Level

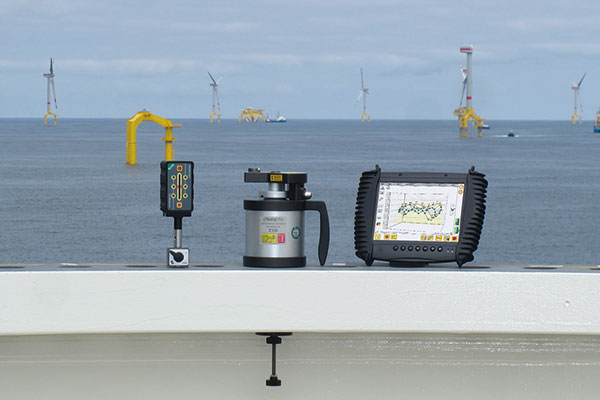

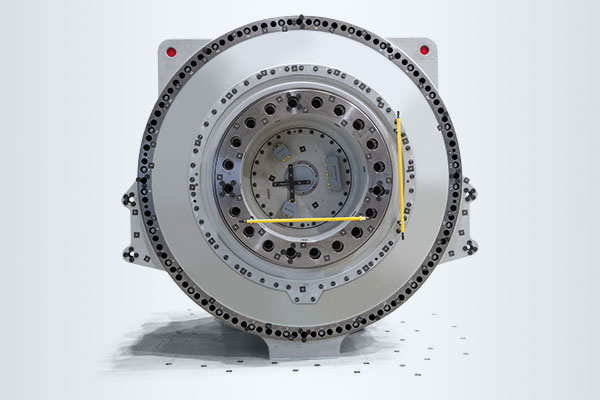

Flange Measurement

Flange Measurement

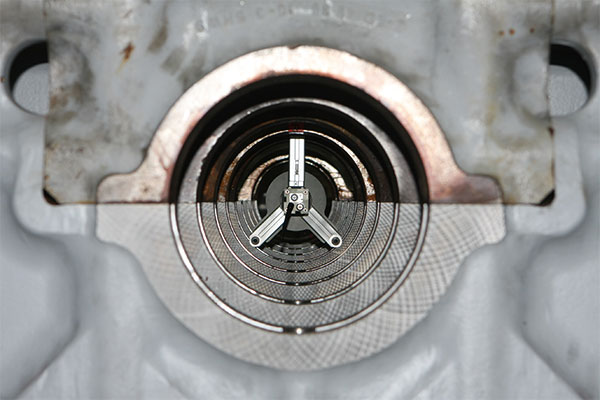

Bore Alignment
